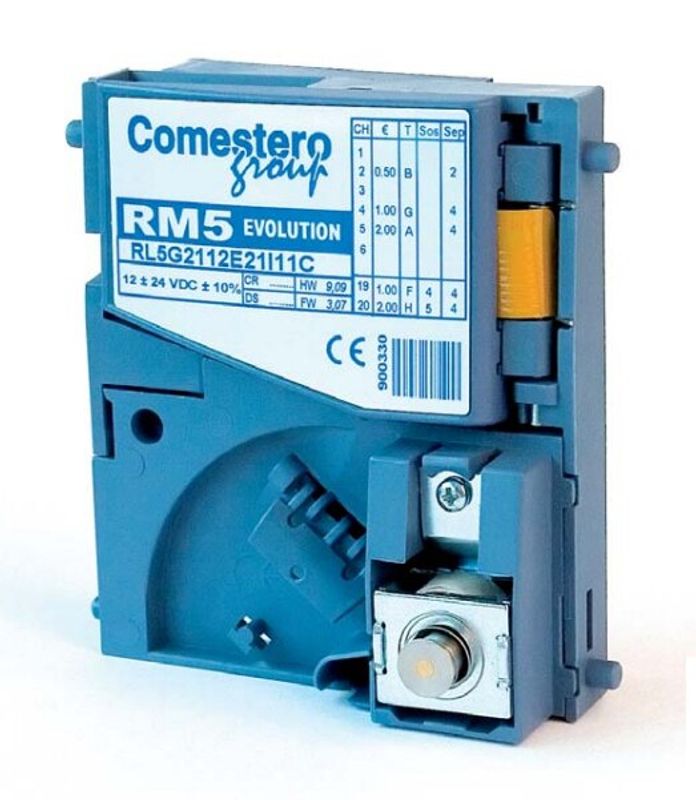

The record-breaking electronic coin validator
The RM5 Evolution coin validator is known for its quality and reliability. Its electronics combine extraordinary selectivity with extreme programming versatility: the Cloning system allows the transfer of the configuration parameters from one sample coin validator to another.
Features:
- 3 pairs of inductive sensors which are used to process 6 different parameters regarding the material and the mass
- 3 pairs of optical sensors for determining the coin's diameter
- A mechanical anti-fishing device, electronic anti-fishing device, and an electronic anti "intrusion" device (only for version F)
- Automatic optical sensor compensation system for variations in temperature, voltage and lighting
- Identification channels: up to 59, each of which can be redirected to the outlets. The first 6 support Self-Prog mode
- Open collection outlets

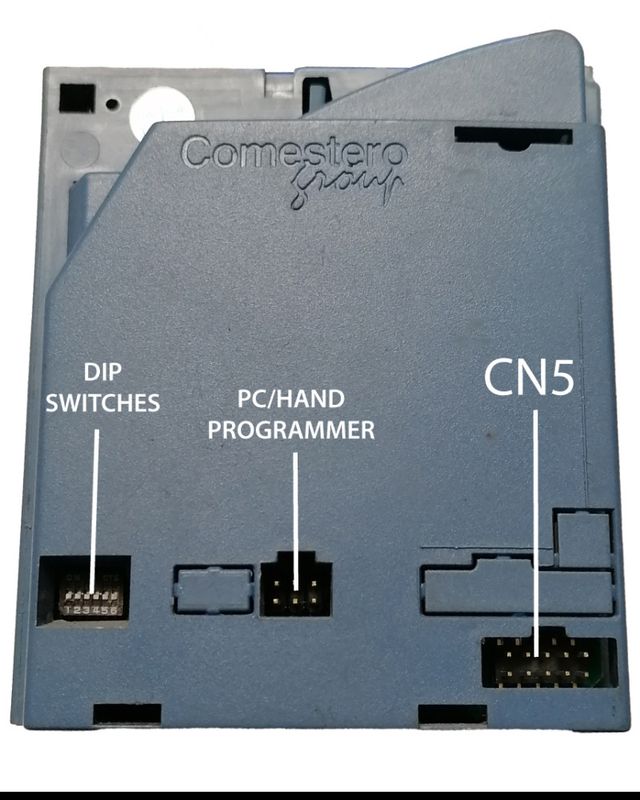

- Serial interface for external connections (portable programmer or PC) for calibrating and testing, as well as for updating the value and operating parameters tables
- Credit recognition: parallel, binary, pulse
- Also available in tropicalised version to adapt to environments exposed to adverse weather conditions
Click here to see RM5 Evolution Datasheet.

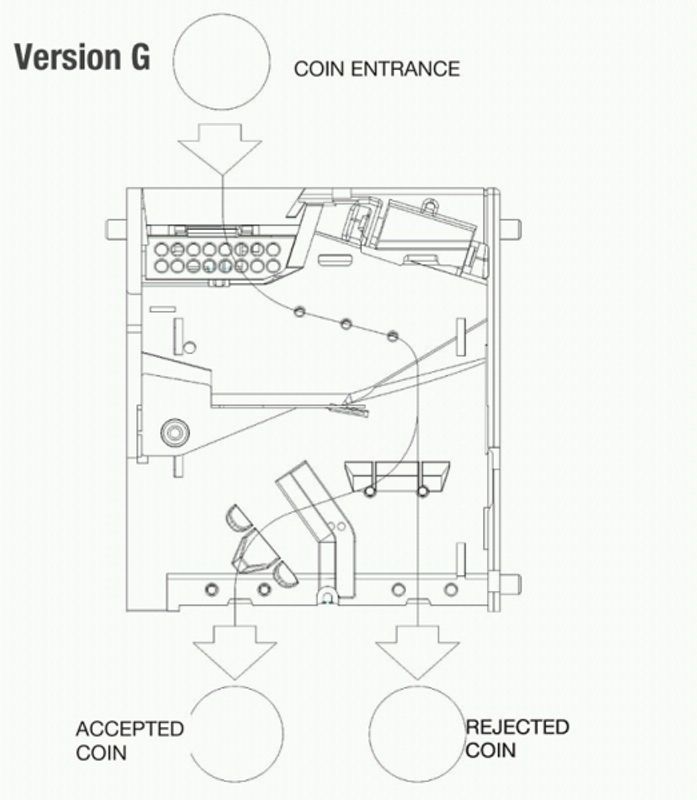

Mechanical Configurations
Model |
Coin Entry |
Coin Reject |
G |
Top |
Bottom |
F |
Top or Front |
Front |
B |
Top or Front |
Bottom |
V |
Top |
Front |
M |
Top or Front |
Bottom |
S |
Top |
Bottom |
